Feature

Full HD Resolution

Equipped with HD1080p resolution guarantees the highest picture quality ensuring that anything users wish to view can be seen clearly.

Full HD Resolution

IR distance of 8 meters

With an IR range of up to 8 meters, an excellent solution is provided for small retail environments. Users can rest assured that the camera will be able to record in excellent quality, even during the night.

IR distance of 8 meters

Passive Infrared Sensor (PIR)

A Passive Infrared Sensor can used to sense the movement of people during the day or night time. Users can pre-record a message to be played when people activate the sensor as well as several options including set off a siren, send an email etc.

Passive Infrared Sensor (PIR)

Day / Night function

The camera is equipped with Digital Noise Reduction (DNR) and a built-in ICR (IR-cut filter removable) to produce excellent imaging quality even under challenging light conditions.

Day / Night function

Specs

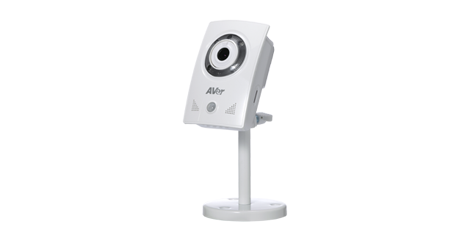

model FC2020-P1
application environment
indoor / outdoor indoor
weatherproof -
vandal-proof -
day / night control auto / manual / schedule
camera images
sensor 1/3.2” CMOS
min. illumination color: 1.0 lux @ F2.0
0 lux @ F2.0 (IR LED on)
built-in IR LEDs yes
IR distance 8m
mechanical ICR yes
auto iris -
lens
lens type fixed lens (manual focus)
F/no F2.0
focal length f=2.8mm
angle of view 103° (horizontal)
61° (vertical)
bracket adjustment -
video
compression H.264 / MJPEG simultaneously
max. resolution (H.264 / MJPEG) full HD (1920 x 1080)
max. frame rate H.264 / MJPEG up to 30fps (1920 x 1080)
streaming H.264 / MJPEG
multiple streams yes
WDR (Wide Dynamic Range) D-WDR
BLC (Backlight Compensation) -
DNR (Digital Noise Reduction) 2D / 3D
IMD (Intelligent Motion Detection) zone 3
privacy mask 3
image orientation mirror, flip
audio
audio encoder G.711 / G.726 audio compression
audio streaming 2-way audio
microphone built-in microphone
network
protocols HTTP, HTTPS, TCP/IP (IPv4, IPv6) SNMP, QoS/DSCP, Access list,  RTSP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP (video only), Samba, Bonjour
Ethernet Ethernet (10/100 Base-T), RJ45 connector
security password protection, IP address filtering, HTTPS encrypted data transmission
wireless -
users up to 10 users simultaneously
alarm
trigger event mail, FTP, save to microSDHC card, relay, Samba
interface
digital input / output 1 / 1
built-in storage option microSDHC card (64GB max.)
general
power supply DC 12V / PoE
DC power consumption
3.6W (IR LED on)
2.76W (IR LED off)
PoE PoE Class 0 (IEEE802.3af)
power consumption:
4.3W (IR LED on) / 3.3W (IR LED off)
dimensions 59 W x 93.7 H x 45.5 D (mm)
net weight 150g (w/o bracket)
temperature and humidity 0°C ~ 45°C, 20% ~ 90%
other value-added features PIR
software
VMS NXU Lite (free bundle up to 32CH)
supported languages
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish

*specifications are subject to change without prior notice
